Parts Lookup › Attachment Parts › Brush Crusher™

BC-8000 Parts

2 assemblies · choose one below

BC-8000 Brush Crusher

Open on its own page
Click a number on the diagram to find the part.

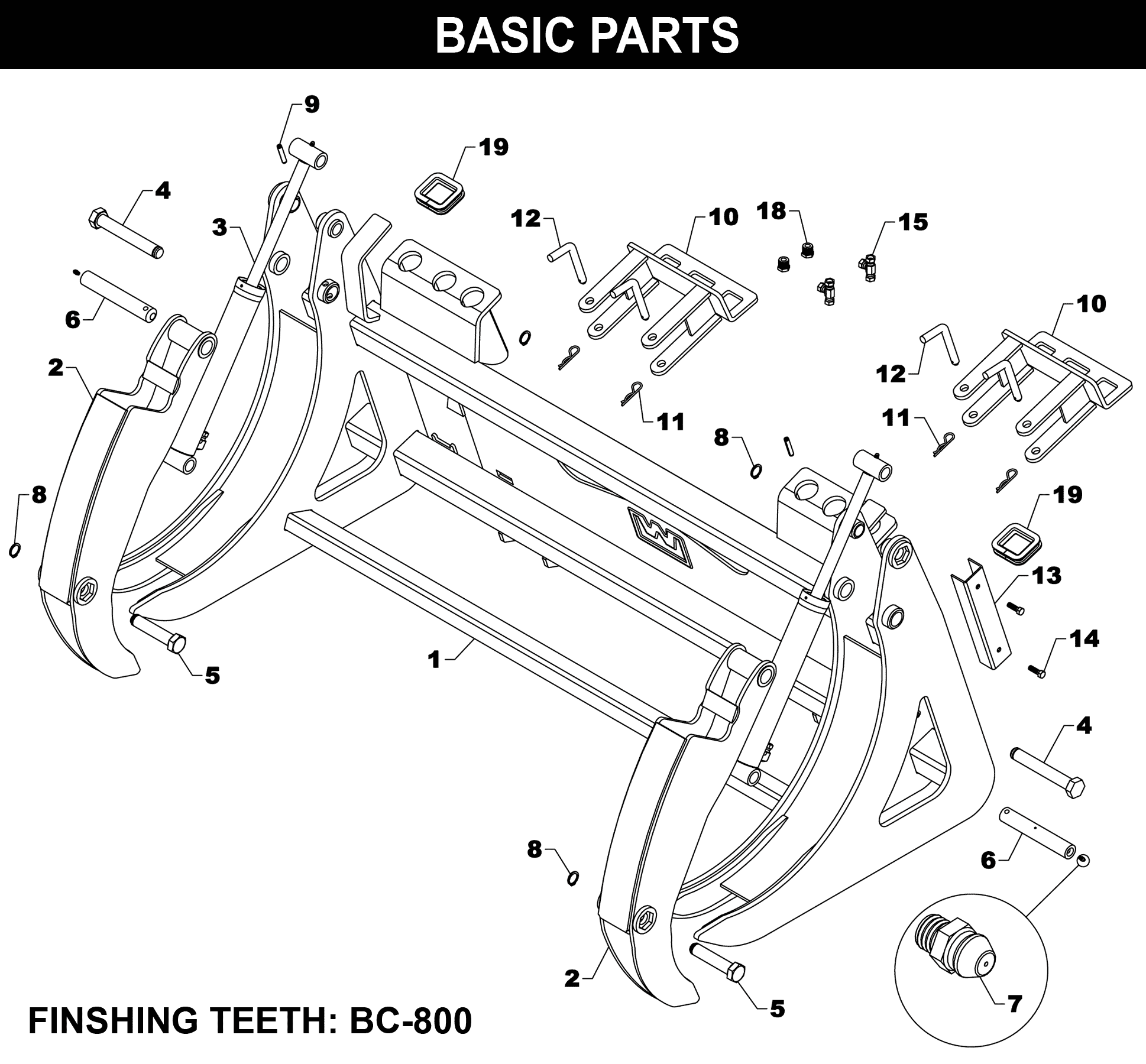

BC-8000 Brush Crusher exploded diagram
RefPart # Description Qty Price
1BCP-160AS FRAME 1 — Call to order
2BCP-9AS UPPER TOOTH 2 $418.91
3M-15 CYLINDER - BRUSH CRUSEHR 2 $648.60
4RAF-41 PIN-HEX HEAD FOR SELF-LEVELING 2 $42.71
5RAF-24 HEX HEAD PIN 2 $34.05
6XAF-55 LINKAGE PIN 2 $67.91
7ZER1805 GREASE FITTING 2 $2.53
8SR-C08 SNAP RING - EXTERNAL 4 $5.03
9DRP0600032 DOUBLE ROLL PIN 2 $2.53
10BCP-159AS REMOVABLE MOUNTING PLATE 2 — Call to order
11HAR-05 HAIR PIN 4 $0.89
12STRT-60 LOCK PIN 4 $20.13
13BCP-174 HOSE COVER 1 $10.53
14HHS0616020 BOLT - 3/8 X 1-1/4 2 $5.03
15PF-HPFT-4 PIPE FITTING - SWIVEL NUT TEE 1/4 2 $70.28
16FHW16036-Y FLEX HOSE WRAP YELLOW - 36 INCH 1 $43.40
17HK-95 HOSE KIT - BC-8000 1 $326.93
18PF-HB0804 PIPE FITTING - HEX BUSHING 1/2 TO 1/4 2 $10.07
19BCP-252 RUBBER TRIM 2 $7.84
