Parts Lookup › Attachment Parts › Brush Crusher™

BC-7000 Parts

2 assemblies · choose one below

BC-7000 Brush Crusher

Open on its own page
Click a number on the diagram to find the part.

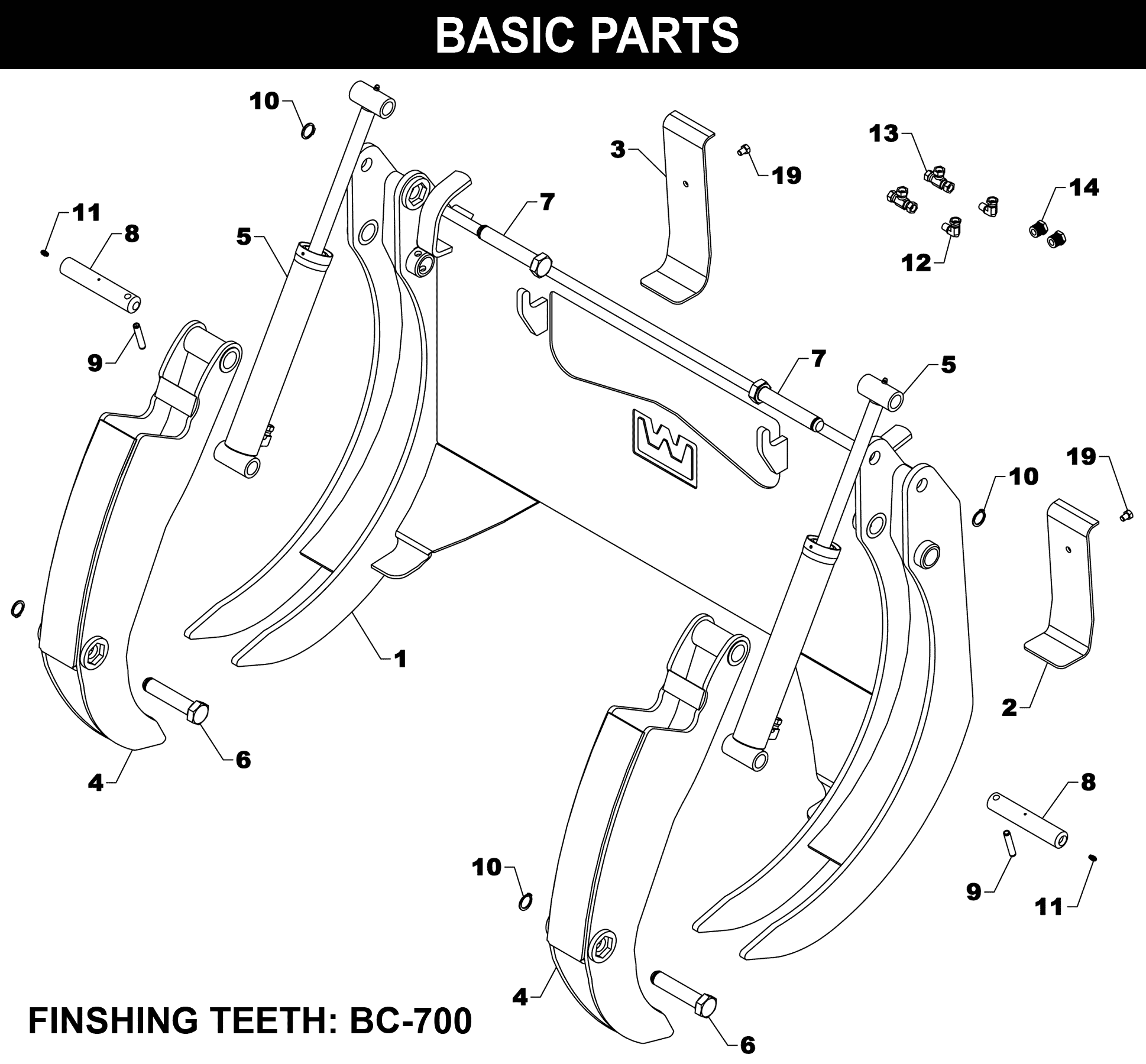

BC-7000 Brush Crusher exploded diagram
RefPart # Description Qty Price
1BCP-1AS FRAME ASSEMBLY 1 — Call to order
2BCP-7 LEFT COVER 1 — Call to order
3BCP-8 RIGHT COVER 1 $15.20
4BCP-9AS UPPER TOOTH 2 $418.91
5M-15 CYLINDER - BRUSH CRUSEHR 2 $648.60
6RAF-24 HEX HEAD PIN 2 $34.05
7RAF-26 HEX HEAD PIN 2 $37.71
8XAF-54 PIN 2 $54.23
9RLP0700036 ROLL PIN - 7/16 2 $3.31
10SR-C08 SNAP RING - EXTERNAL 4 $5.03
11ZER1805 GREASE FITTING 2 $2.53
12PF-SWE04 PIPE FITTING - ADAPTER 2 $18.10
13PF-HPFT-4 PIPE FITTING - SWIVEL NUT TEE 1/4 2 $70.28
14PF-HB0804 PIPE FITTING - HEX BUSHING 1/2 TO 1/4 2 $10.07
15FHW16014-Y FLEX HOSE WRAP YELLOW - 14 INCH 1 $16.85
16FHW16016-Y FLEX HOSE WRAP YELLOW - 16 INCH 1 $19.25
17FHW16021-Y FLEX HOSE WRAP YELLOW - 21 INCH 1 $25.31
18HK-91 HOSE KIT - BC-7000 2 $318.15
19HHS0616008 BOLT - 3/8 X 1/2 2 — Call to order
