Parts Lookup › Attachment Parts › Brush Crusher™

BC-6000 Parts

4 assemblies · choose one below

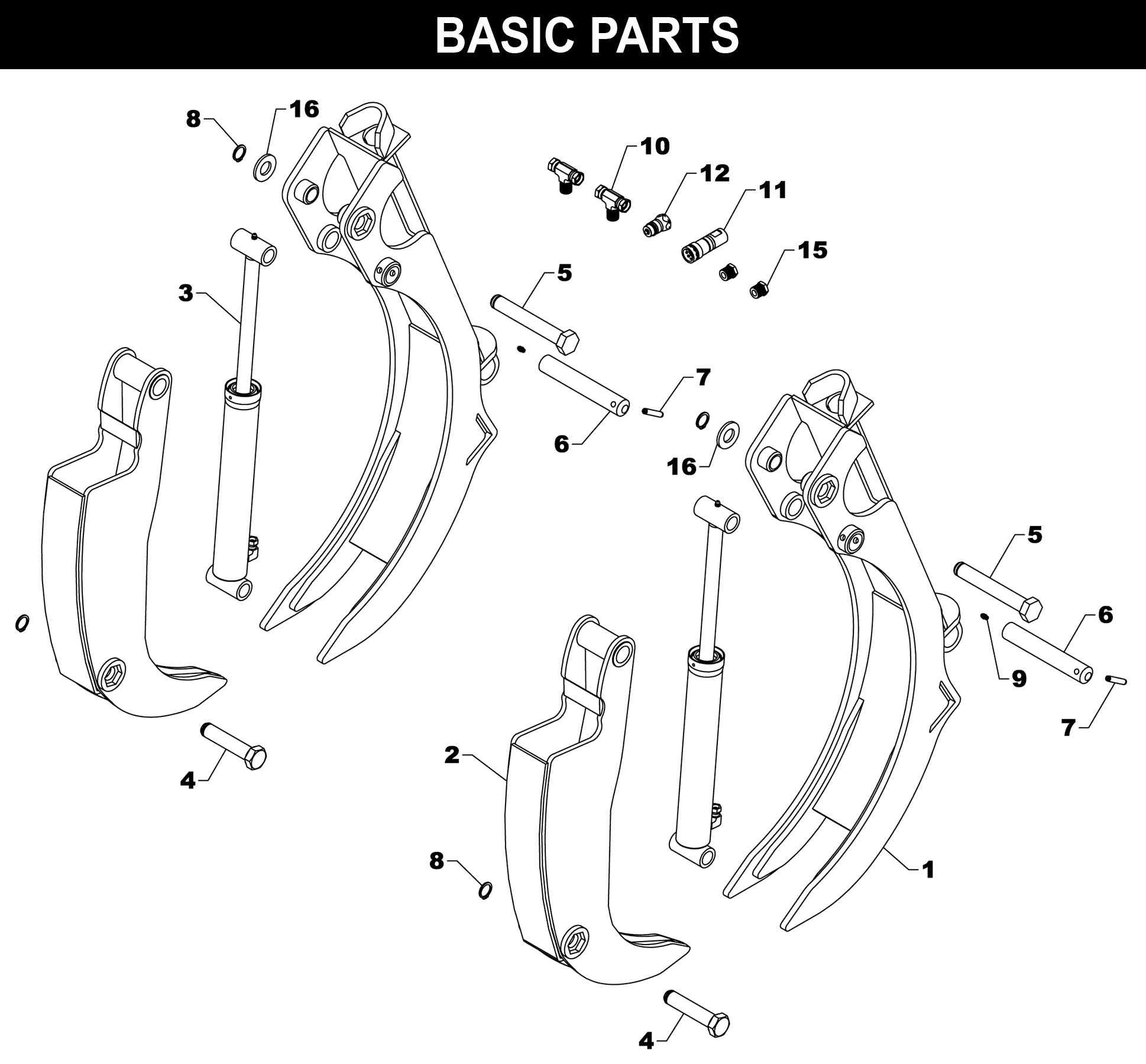

BC-6000 Brush Crusher

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	BCP-30AS	REAR TOOTH	2	—	Call to order
2	BCP-9AS	UPPER TOOTH	2	$418.91
3	LM-15	MALE COUPLER - 1/4	2	$20.13
4	RAF-24	HEX HEAD PIN	2	$34.05
5	RAF-41	PIN-HEX HEAD FOR SELF-LEVELING	2	$42.71
6	XAF-55	LINKAGE PIN	2	$67.91
7	DRP0600032	DOUBLE ROLL PIN	2	$2.53
8	SR-C08	SNAP RING - EXTERNAL	4	$5.03
9	ZER1805	GREASE FITTING	2	$2.53
10	PF-TB0806	PIPE FITTING -PIPE BRANCH SWIVEL NUT UNION	2	$55.35
11	LM-13	FEMALE COUPLER - HIGH PRESSURE	1	$105.61
12	FLM-14AS	TOOTH ASSEMBLY	1	$521.17
13	FHW16025-Y	FLEX HOSE WRAP YELLOW - 25 INCH	1	$30.11
14	HK-92	HOSE KIT	1	$381.10
15	PF-HB0804	PIPE FITTING - HEX BUSHING 1/2 TO 1/4	2	$10.07
16	RAF-65	WASHER - 1/4	2	$17.62

Click a number on the diagram to find the part.

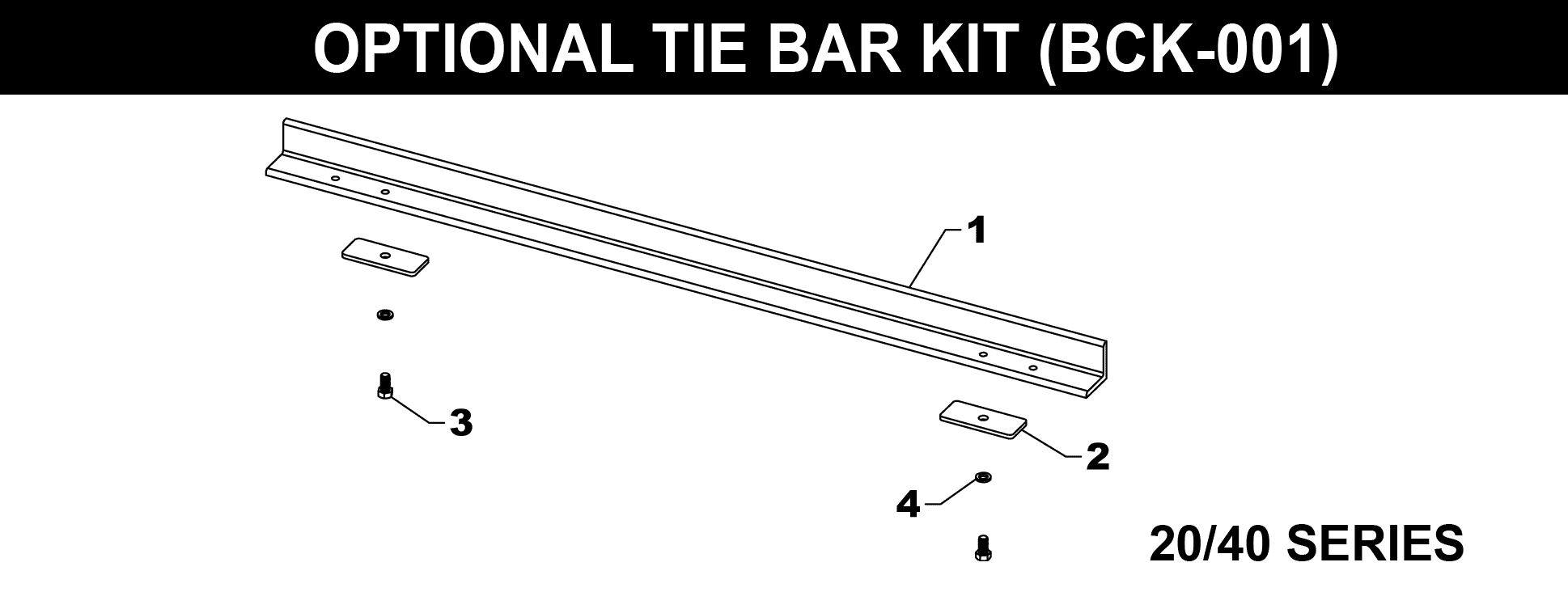

Ref	Part #	Description	Qty	Price
1	BCP-34	ANGLE SUPPORT	1	$143.26
2	BCP-35	LOCK PLATE	2	$10.35
3	HHS0813016	BOLT - 1/2 X 1	2	$2.24
4	LWM08	LOCK WASHER - 1/2	2	$0.37

Click a number on the diagram to find the part.

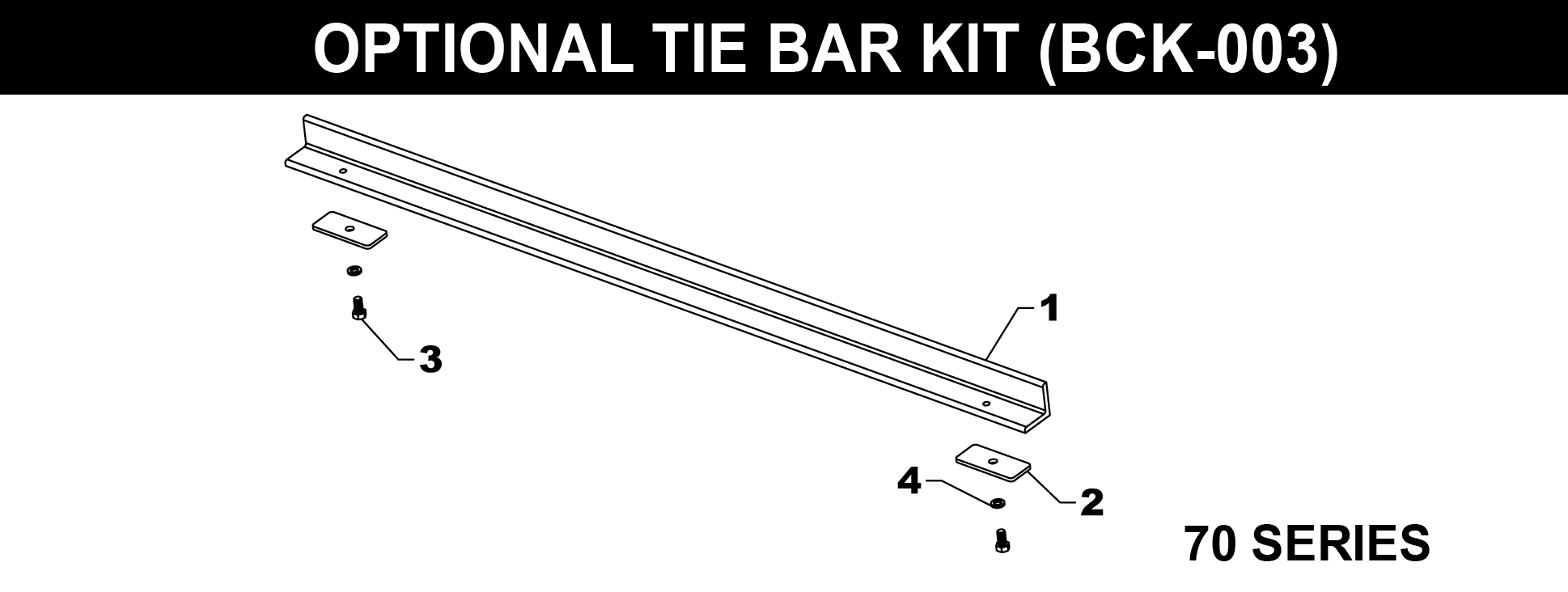

Ref	Part #	Description	Qty	Price	Buy
1	BCP-36	ANGLE SUPPORT	1	—	Call to order
2	BCP-35	LOCK PLATE	2	$10.35
3	HHS0813016	BOLT - 1/2 X 1	2	$2.24
4	LWM08	LOCK WASHER - 1/2	2	$0.37

Click a number on the diagram to find the part.

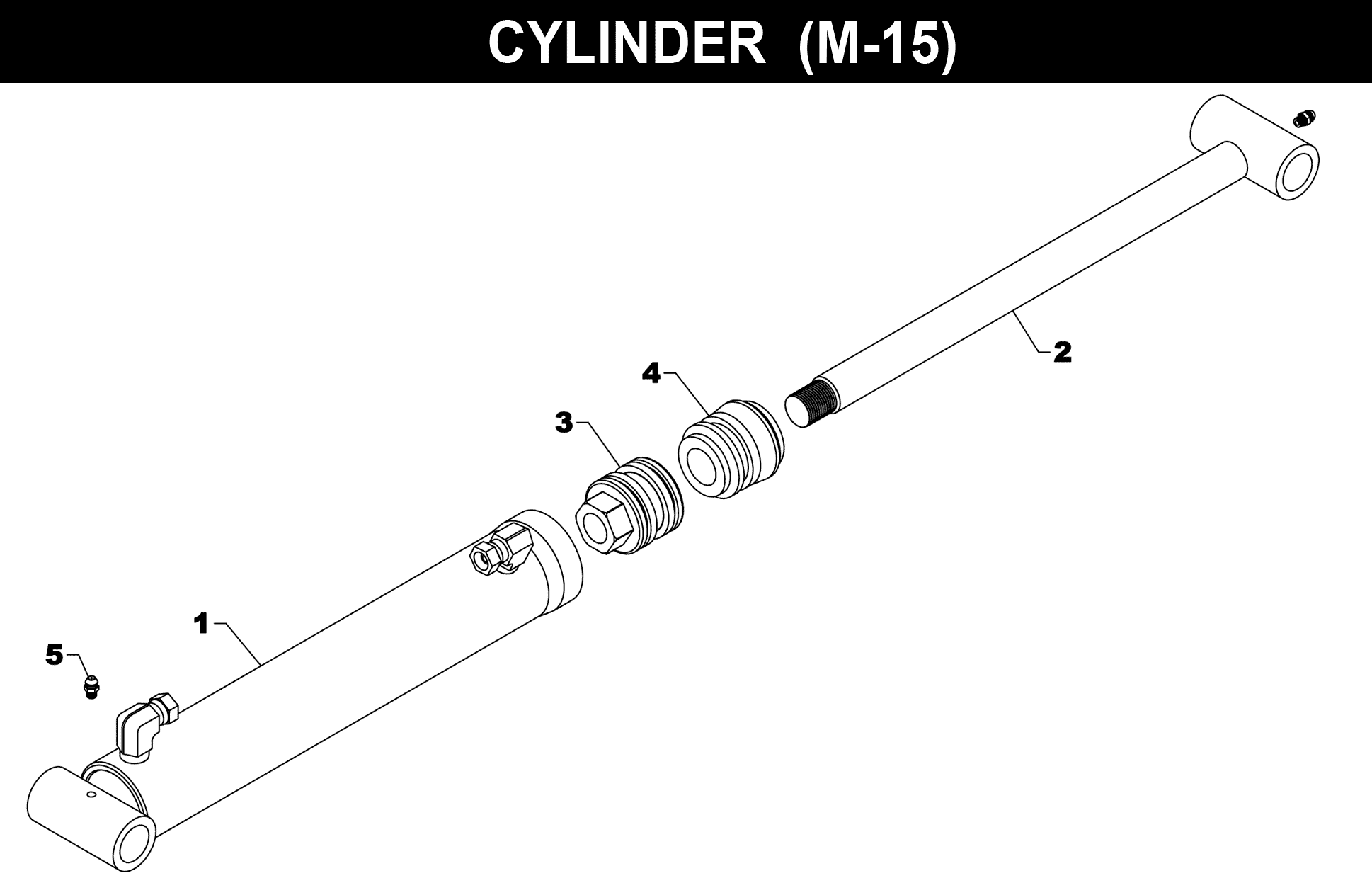

Ref	Part #	Description	Qty	Price
1	M-1501	CYLINDER-BARREL (M-15)	1	$357.01
2	M-1510	CYLINDER-RAM (M-15)	1	$291.86
3	P-J	PISTON - NEW STYLE (B-15)	1	$155.86
4	G-V	GLAND	1	$136.53
5	ZER1805	GREASE FITTING	2	$2.53
6	#34CK	CYLINDER REPAIR SEAL KIT	1	$88.02
