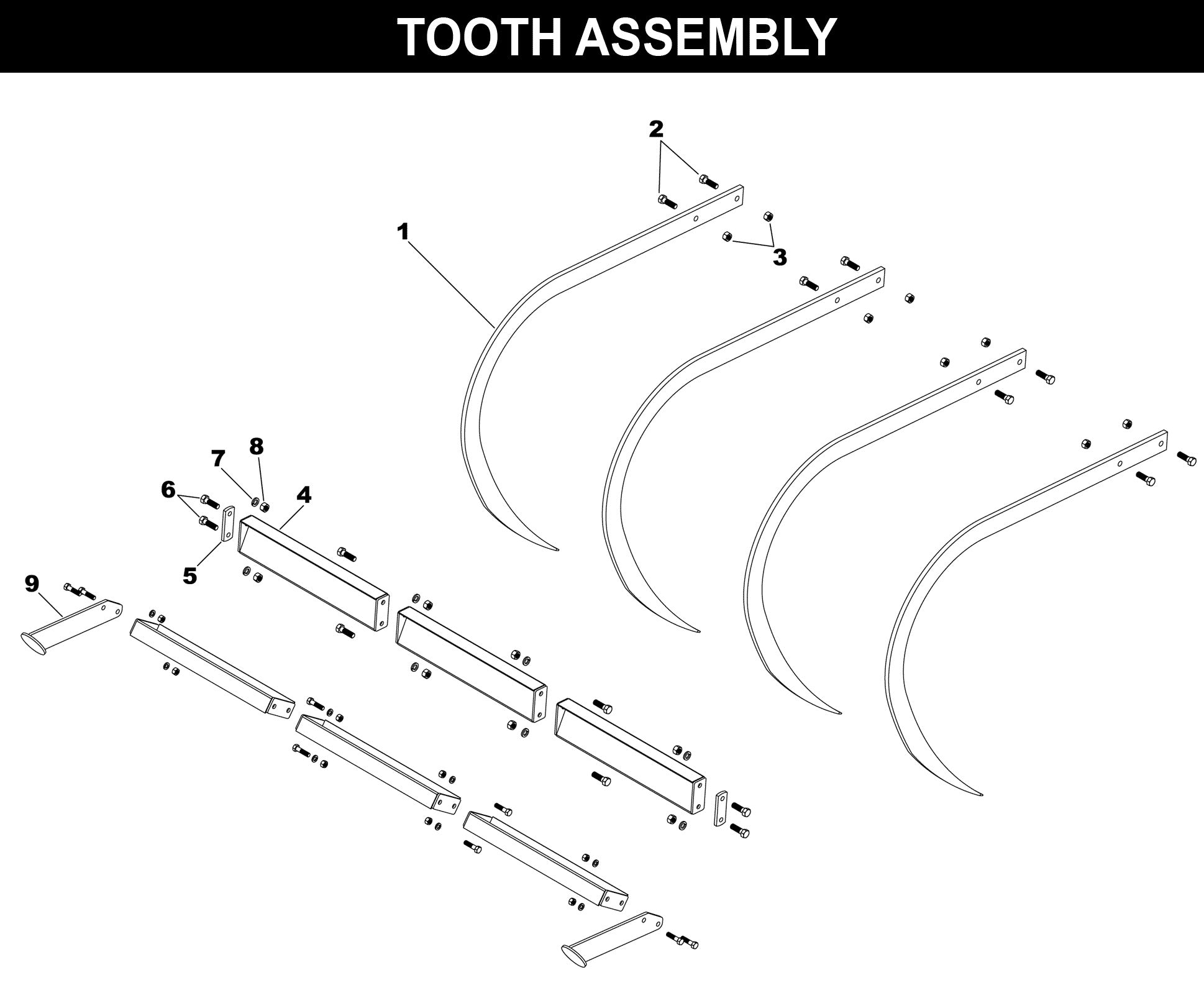

Tooth Assembly GF-64

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	GF-337	TOOTH	4	$241.35
2	HHS1011032	BOLT - 5/8 X 2	8	$5.03
3	HTN1011	LOCK NUT - 5/8	8	$5.03
4	GF-327AS	Z-BRACE	6	$105.61

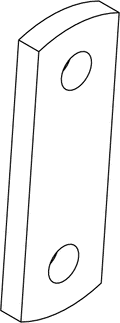

5	GF-328	CLAMP PLATE	2	$17.62
6	HHS0813032	BOLT - 1/2 X 2	16	$2.53
7	LWM08	LOCK WASHER - 1/2	16	$0.37
8	HFN0813	NUT - 1/2	16	$0.95
9	GF-325AS	STAND	2	$55.35
