Parts Lookup › Traction Action Series

TA-46 TOWER

Fits:TA-46
Click a number on the diagram to find the part.

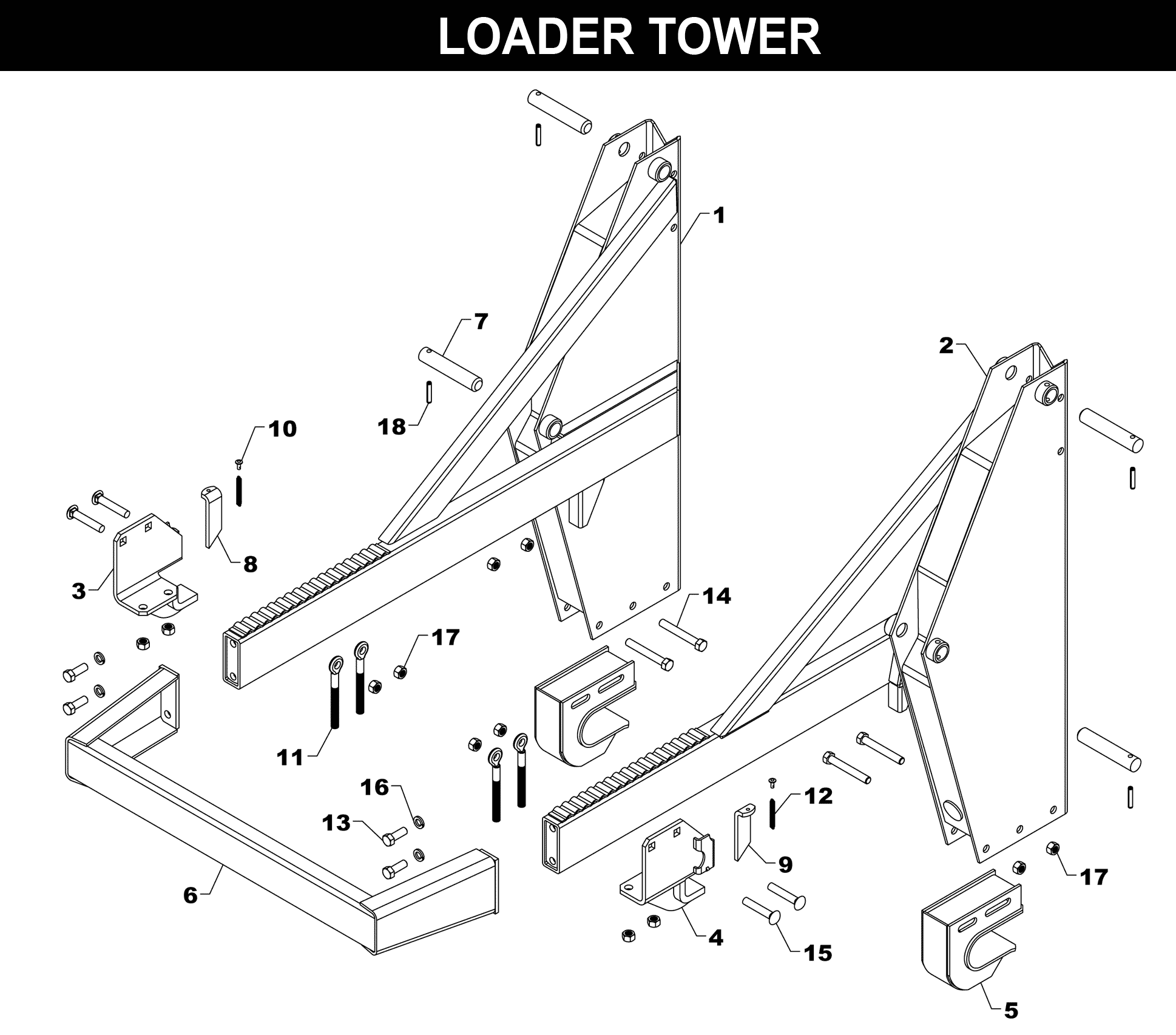

TA-46 TOWER exploded diagram
RefPart # Description Qty Price
1NAT-12AS-R TOWER - RIGHT (TA-46) 1 $2,198.50
2NAT-12AS-L TOWER - LEFT (TA-46) 1 $2,198.50
3NAT-120AS-R SLIDE LOCK - RIGHT 1 $143.32
4NAT-120AS-L SLIDE LOCK - LEFT 1 $143.32
5RT-15AS SHOE-ADJUSTABLE 2 $178.48
60H005 FRONT WRAP 1 $666.17
7NAF-51 PIN (HEADLESS) 4 $40.22
8NAT-106-R DROP LOCK - RIGHT 1 $15.12
9NAT-106-L DROP LOCK - LEFT 1 $15.12
10NAT-126 RIVET 2 $2.53
11NAT-140 BAR CLAMP BOLT 4 $17.62
12RLG-51 SPRING 2 $7.54
13HHS1011028 BOLT - 5/8 X 1-3/4 4 $4.55
14HHS1011072 BOLT - 5/8 X 4-1/2 4 $7.54
14CBF1011072 CARRIAGE BOLT - 5/8 X 4-1/2 4 $12.58
16LWM10 LOCK WASHER -5/8 4 $0.77
17HTN1011 LOCK NUT - 5/8 12 $5.03
18DRP0600032 DOUBLE ROLL PIN 4 $2.53
