SP-43 Basic Parts

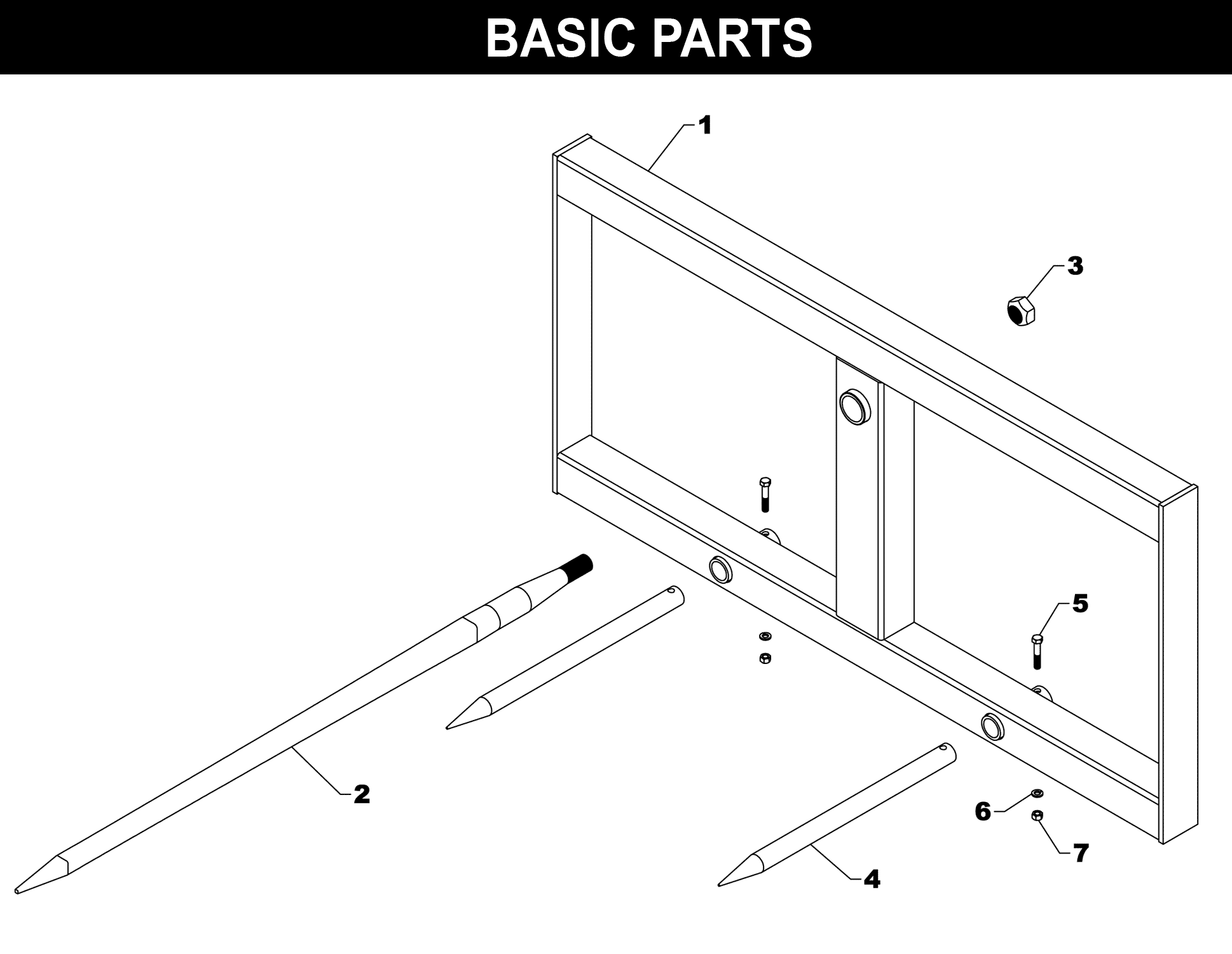

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	SP-43AS	BALE SPEAR - FRAME ONLY (SP-43)	1	$1,103.61
2	BS-248	BALE SPEAR - LARGE TAPERED	1	$205.28
3	BS-247	NUT	1	$57.84
4	BS-47	SPEAR	2	$128.22
5	HHS0616032	BOLT - 3/8 X 2	2	$2.53
6	LWM06	LOCK WASHER - 3/8	2	$0.37
7	HFN0616	HEX NUT - 3/8	2	$0.67
