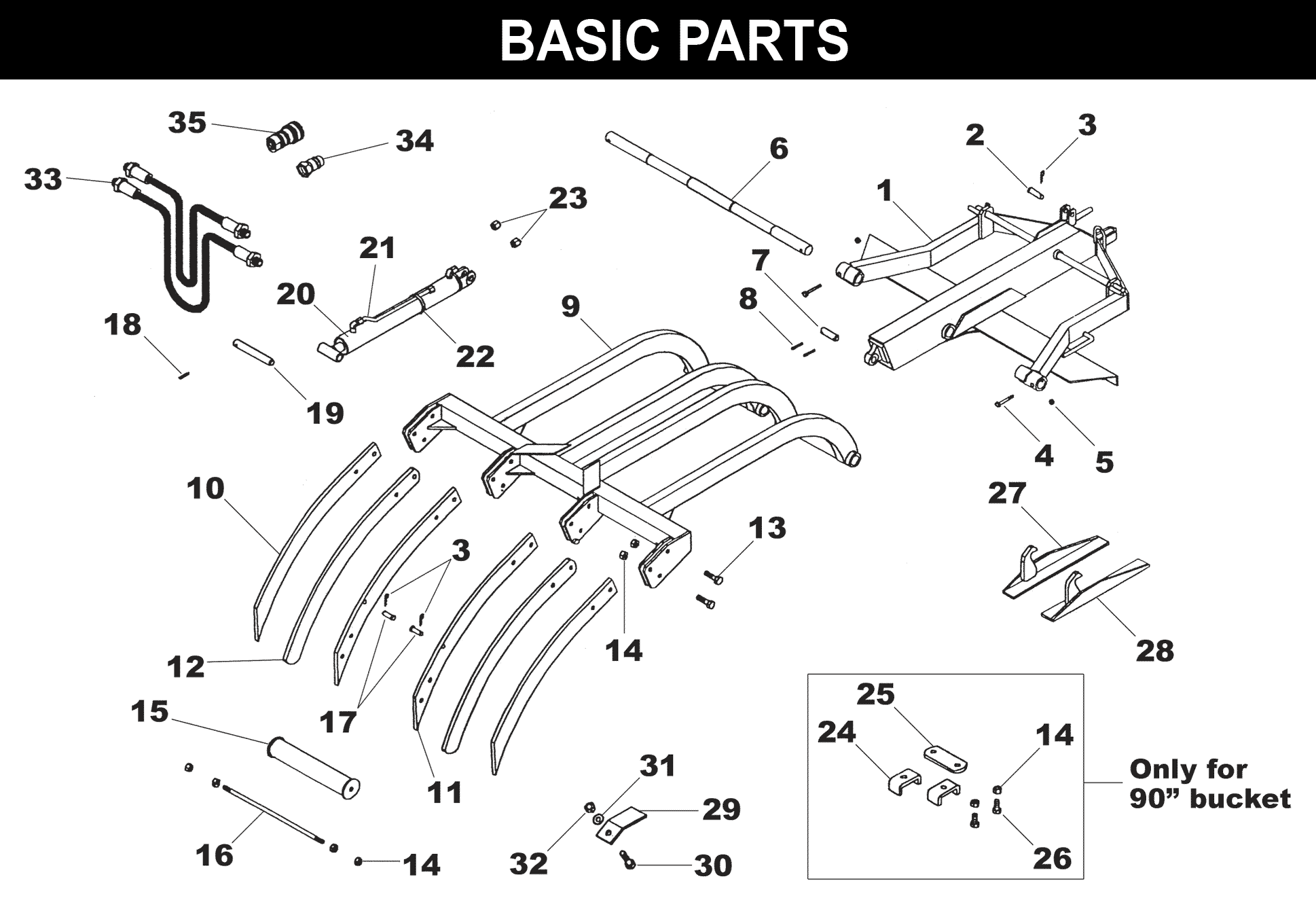

| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 | GF-224AS | LOWER BACK FRAME | 1 | $1,684.35 | ||
| 2 |  | HM-26 | CLEVIS PIN - 3/4 | 1 | $7.54 | |
| 3 |  | HAR-04 | HAIR PIN | 3 | $0.89 | |
| 4 |  | HHS0616048 | BOLT -3/8 X 3 | 2 | $5.03 | |
| 5 |  | HTN0616 | LOCK NUT - 3/8 | 2 | $2.53 | |
| 6 |  | GF-16A | SHAFT | 1 | $291.64 | |
| 7 |  | LF-49 | PIN - BUCKET CYLINDER | 1 | $12.58 | |
| 8 |  | CTK0400032 | COTTER KEY - 1/4 X 2 | 2 | $0.87 | |
| 9 |  | GF-127AS | TOOTH FRAME | 1 | $2,327.92 | |
| 10 |  | GF-135 | OUTSIDE TOOTH - 2 HOLES | 2 | $289.13 | |
| 11 |  | GF-134 | INSIDE TOOTH - 5 HOLES | 2 | $231.28 | |
| 12 |  | GF-137A | ADJUSTABLE TOOTH WITH RADIUS END | 2 | $216.83 | |
| 13 |  | HHS1011040 | BOLT - 5/8 X 2-1/2 | 8 | $5.06 | |
| 14 |  | HTN1011 | LOCK NUT - 5/8 | 14 | $5.03 | |
| 15 |  | GF-151AS | SPACER TUBE | 1 | $98.05 | |
| 16 |  | GF-150 | THREADED ROD | 1 | $20.13 | |
| 17 |  | ET-38 | CLEVIS PIN | 2 | $7.54 | |
| 18 |  | DRP0600028 | DOUBLE ROLL PIN | 1 | $2.53 | |
| 19 |  | LF-52 | PIN (HEADLESS) | 1 | $18.57 | |
| 21 | OLT-143 | OIL LINE | 1 | $27.63 | ||
| 22 |  | BAND-12 | METAL BAND | 1 | $5.03 | |
| 23 |  | PF-FFC8 | PIPE FITTING - FEMALE CONNECTOR | 2 | $20.13 | |
| 24 | GF-225 | TIE DOWN BRACKET | 2 | $15.12 | ||
| 25 | STP-38 | STRAP | 1 | $30.17 | ||
| 26 |  | HHS1011032 | BOLT - 5/8 X 2 | 2 | $5.03 | |
| 27 |  | GF-46AS-R | GRAB FORK HOOK - RIGHT | 1 | $82.95 | |
| 28 |  | GF-46AS-L | GRAB FORK HOOK - LEFT | 1 | $82.95 | |
| 29 |  | GF-48 | CENTER CLAMP PLATE | 1 | $55.35 | |
| 30 |  | HHS1210048 | BOLT -3/4 X 3 | 1 | $7.54 | |
| 31 |  | FWW12 | FLAT WASHER - 3/4 | 1 | $2.53 | |
| 32 |  | HTN1210 | LOCK NUT - 3/4 | 1 | $5.03 | |
| 33 |  | HK-21 | HOSE KIT | 1 | $422.34 | |
| 33 |  | HK-27 | HOSE KIT | 1 | $261.46 | |
| 34 |  | LM-10 | MALE COUPLER | 1 | $62.70 | |
| 35 |  | LM-11 | FEMALE COUPLER | 1 | $55.35 |
