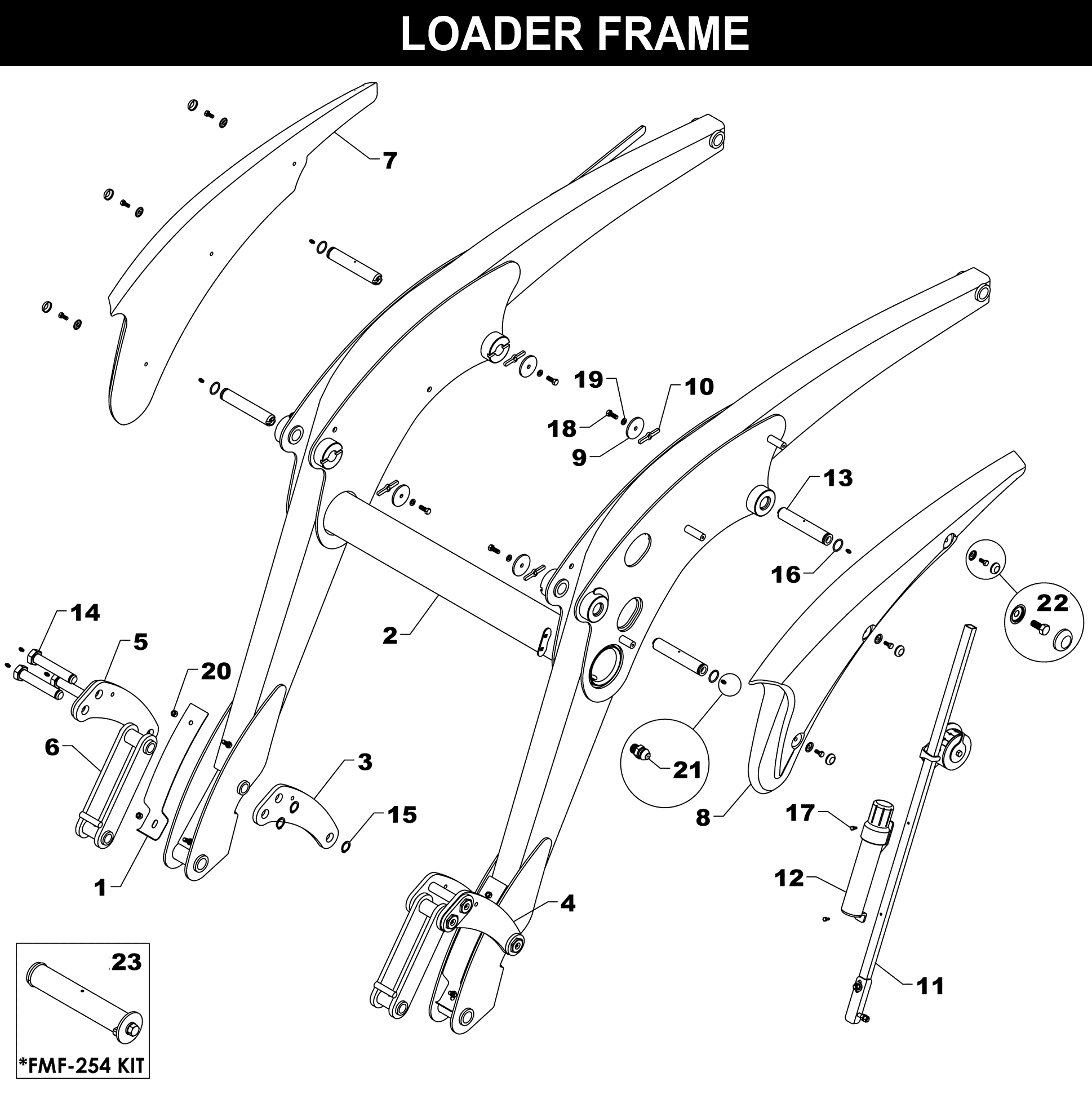

| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | RZF-101 | TOP CAP | 2 | $24.09 | |
| 2 |  | RZF-104AS | FRAME (MAX 420) | 1 | $7,649.69 | |
| 2 | RZF-204AS | FRAME (MAX 440) | 1 | — | Call to order | |
| 3 |  | RZF-110 | BUCKET LINKAGE | 2 | $82.29 | |
| 4 |  | RZF-110AS-L | BUCKET LINKAGE (LEFT) | 1 | $92.05 | |
| 5 |  | RZF-110AS-R | BUCKET LINKAGE (RIGHT) | 1 | $92.05 | |
| 6 |  | RZF-115AS | BUCKET LINKAGE | 2 | $120.93 | |
| 7 |  | RZF-151 KIT | JACKET KIT (RIGHT) | 1 | $365.40 | |
| 8 |  | RZF-152 KIT | JACKET KIT (LEFT) | 1 | $365.40 | |
| 9 |  | RZF-226 | WASHER | 4 | $2.44 | |

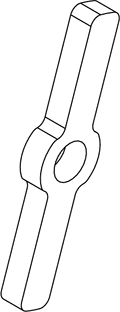

| 10 |  | RZF-227 | PIN LOCK | 4 | $2.53 | |
| 11 |  | LAC-15-28 | ROTATIONAL BUCKET INDICATOR | 1 | $123.18 | |
| 12 |  | GP-2 | CANISTER TO STORE MANUAL | 1 | $44.94 | |
| 13 |  | FMF-254 | LINKAGE PIN | 4 | $111.89 | |
| 14 |  | RAF-226 | PIVOT PIN | 6 | $72.89 | |
| 15 |  | SR-C08 | SNAP RING - EXTERNAL | 6 | $5.03 | |
| 16 |  | SR-B10 | WIRE RING - 1-3/8 | 4 | $3.13 | |
| 17 |  | EC-M03 | SELF-TAPPING SCREW | 2 | $1.56 | |
| 18 |  | HHS0616016 | BOLT - 3/8 X 1 | 4 | $2.53 | |
| 19 |  | LWM06 | LOCK WASHER - 3/8 | 4 | $0.37 | |
| 20 |  | HTN0616 | LOCK NUT - 3/8 | 4 | $2.53 | |
| 21 |  | ZER1805 | GREASE FITTING | 12 | $2.53 | |
| 22 |  | RZF-156 KIT | JACKET ATTACH HARDWARE | 6 | $6.03 | |
| 23 |  | FMF-254 KIT-1 | PIN KIT - (FM/MAX) | 1 | $114.67 |
