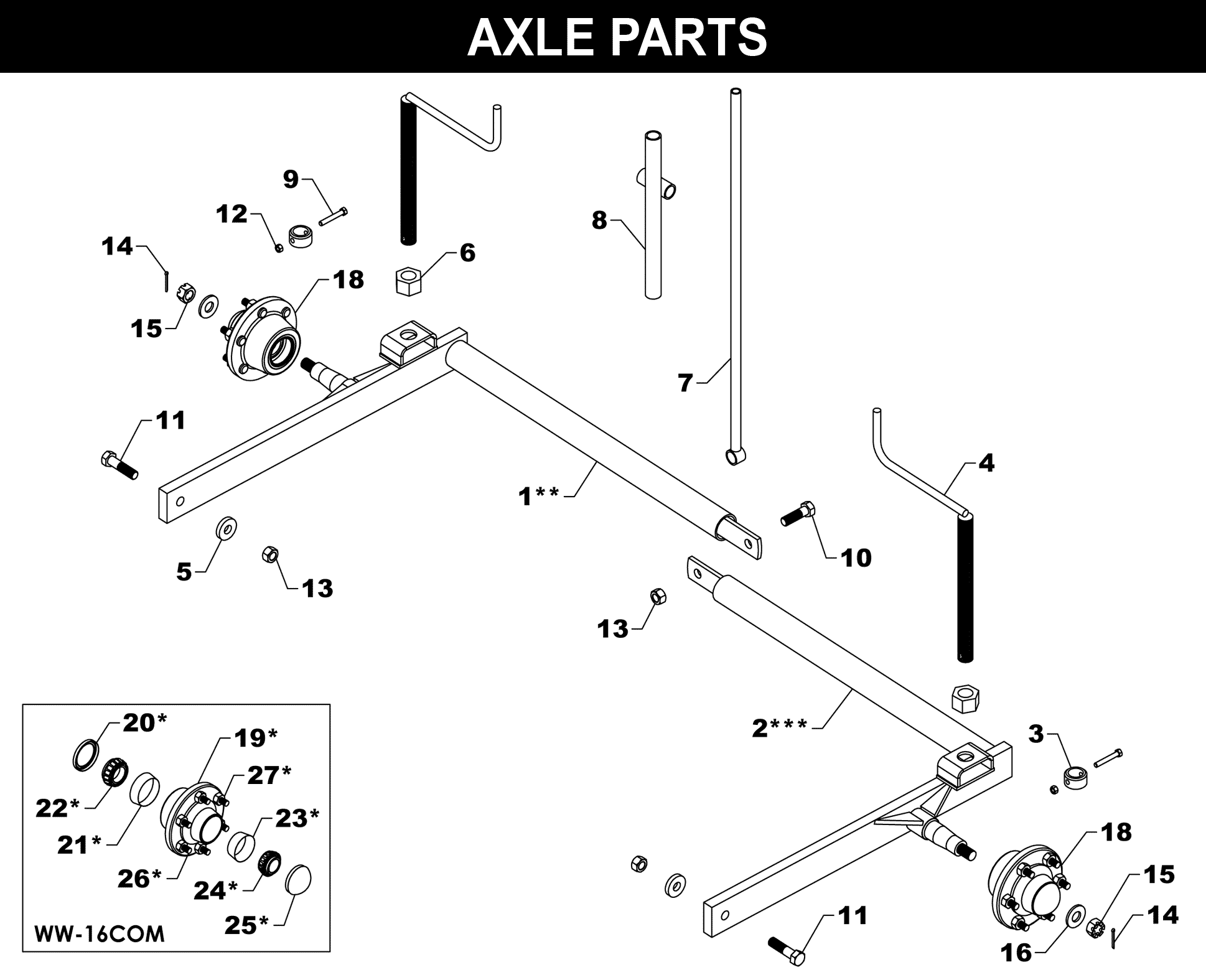

| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | LS-15COM-R | REPLACEMENT AXLE | 1 | $577.93 | |
| 1 | LS-215COM-R | REPLACEMENT AXLE | 1 | — | Call to order | |
| 2 |  | LS-15COM-L | REPLACEMENT AXLE | 1 | $577.93 | |
| 2 | LS-215COM-L | REPLACEMENT AXLE | 1 | — | Call to order | |
| 3 |  | QC-102 | BUSHING WITH HOLE - 1-1/4 | 2 | $12.58 | |
| 4 |  | LS-38AS | SPACER | 2 | $62.80 | |
| 5 |  | LS-46 | SPACER | 2 | $5.03 | |
| 6 |  | LS-60 | ADJUSTMENT NUT | 2 | $55.35 | |
| 7 |  | LS-50AS | GAUGE ROD | 1 | $52.80 | |

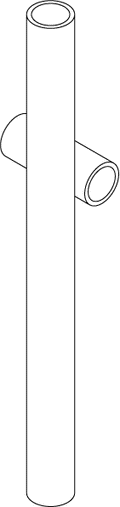

| 8 |  | LS-52AS | GAUGE ROD HOLDER | 1 | $52.80 | |
| 9 |  | HHS0616040 | BOLT -3/8 X 2-1/2 | 2 | $2.53 | |
| 10 |  | HHS1210040 | BOLT -3/4 X 2-1/2 | 1 | $5.03 | |
| 11 |  | HHS1210048 | BOLT -3/4 X 3 | 2 | $7.54 | |
| 12 |  | HTN0616 | LOCK NUT - 3/8 | 2 | $2.53 | |
| 13 |  | HTN1210 | LOCK NUT - 3/4 | 3 | $5.03 | |
| 14 |  | CTK0250024 | COTTER PIN - 5/32 X 1-1/2 | 2 | $0.71 | |
| 15 |  | HSN1414 | SLOTTED NUT - 7/8 | 2 | $23.83 | |
| 16 |  | HW-26 | SPINDLE WASHER | 2 | $5.03 | |
| 17 | 1566 | RIM (15.0 X 6-6 BOLT) | 2 | $173.47 | ||
| 18 |  | WW-16COM | HUB COMPLETE | 2 | $439.93 | |
| 19 | WW-16 | HUB | 1 | — | Call to order | |
| 20 |  | HD-35 | GREASE SEAL | 1 | $22.62 | |
| 21 |  | HD-32 | INSIDE RACE | 1 | $45.26 | |
| 22 |  | HD-42 | INSIDE BEARING | 1 | $85.49 | |
| 23 |  | HD-276 | OUTSIDE RACE | 1 | $25.13 | |
| 24 |  | HD-136 | OUTSIDE BEARING | 1 | $60.33 | |
| 25 |  | 8034 | HUB CAP | 1 | $10.07 | |
| 26 |  | 916WB | WHEEL BOLT | 6 | $7.54 | |
| 27 |  | 916WN | WHEEL NUT | 6 | $5.03 |
