Parts Lookup › Lift & Carry

Forklift - Heavy Duty - FL-42 / FL-48

Fits:Forklift FL-42Forklift FL-48
Click a number on the diagram to find the part.

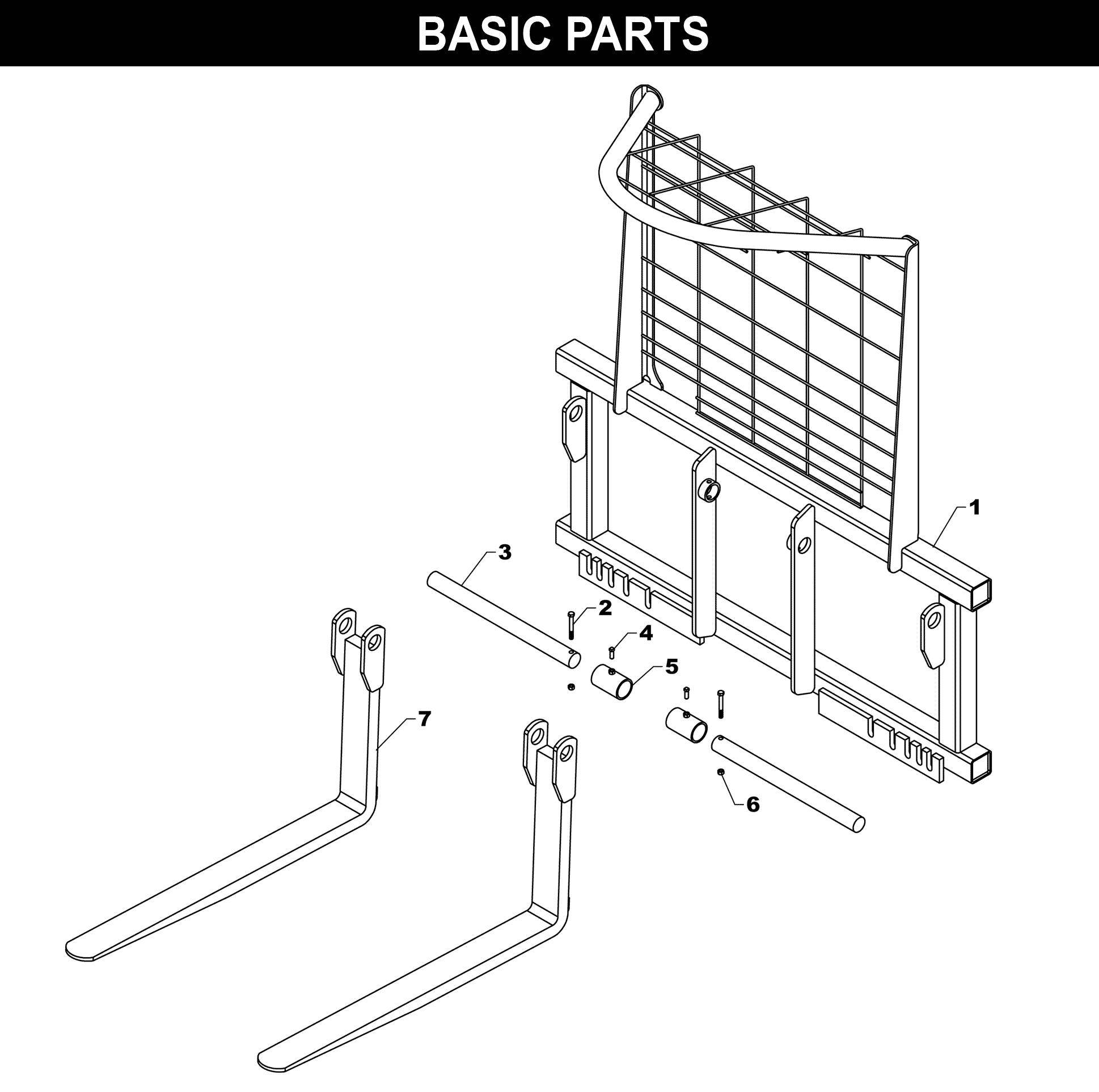

Forklift - Heavy Duty - FL-42 / FL-48 exploded diagram
RefPart # Description Qty Price
1FL-21AS FORK LIFT FRAME 1 $1,304.73
2HHS0616048 BOLT -3/8 X 3 2 $5.03
3FL-3 SHAFT 2 $125.71
4SHS0616016 SQUARE HEAD SET SCREW - 3/8 X 1 2 $2.53
5FL-9AS LOCK COLLAR 2 $23.70
6HFN0616 HEX NUT - 3/8 2 $0.67
7FL-11AS-42 FORK LIFT TOOTH - 42 INCH 2 $821.10
7FL-11AS-48 FORK LIFT TOOTH - 48 INCH 2 $855.59
