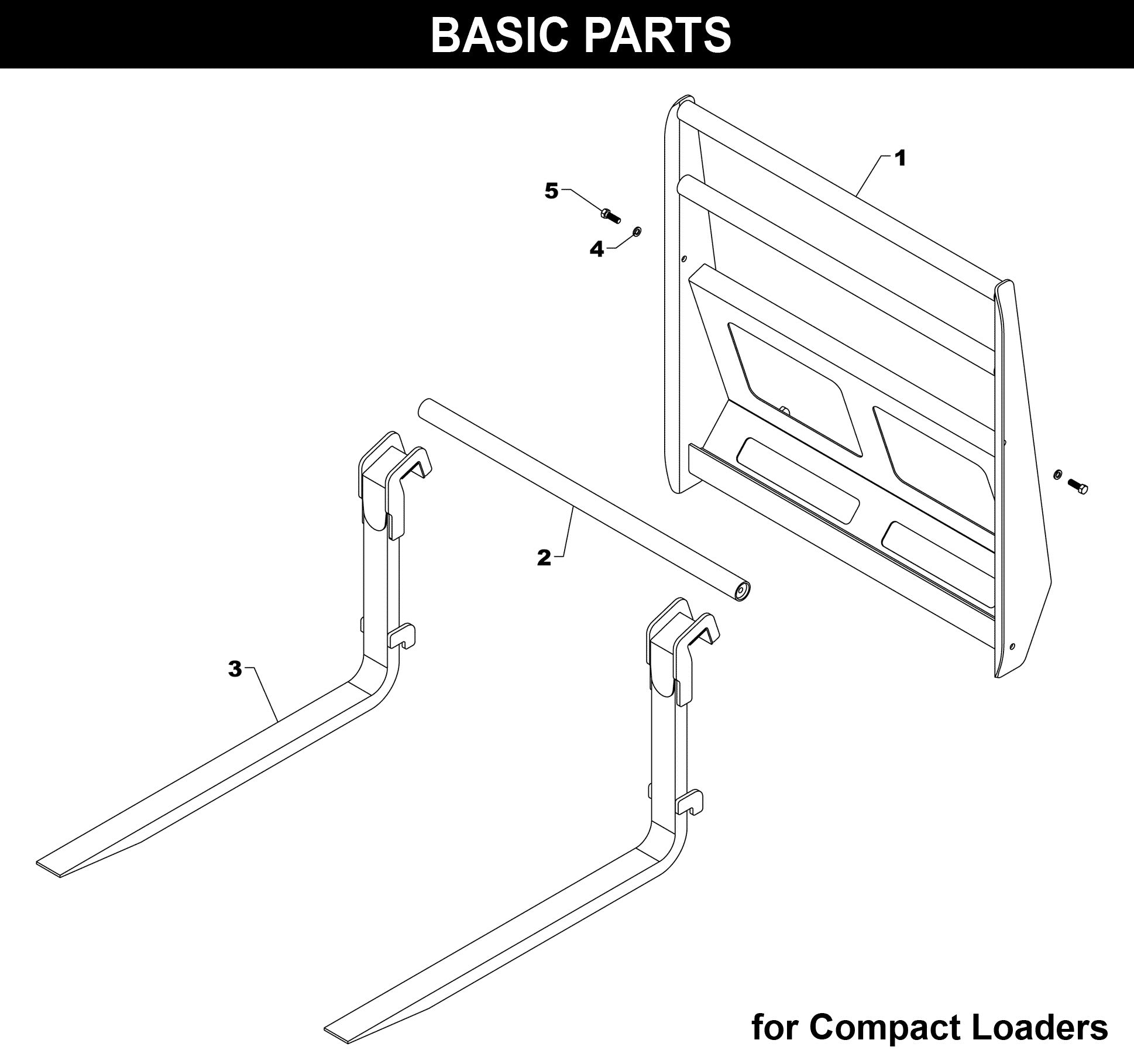

Forklift - FLM-42

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	FLM-7AS	FRAME ASSEMBLY	1	$1,467.36
2	FLM-10AS	TOOTH BRACE ASSEMBLY	1	$105.61
3	FLM-14AS	TOOTH ASSEMBLY	2	$521.17
4	LWM08	LOCK WASHER - 1/2	2	$0.37
5	HHS0813024	BOLT - 1/2 X 1-1/2	2	$2.53
